If using more than one speaker subwoofer or grille up to 12 can be used with a single rf receiver both included harnesses are used and spliced to all the speakers. You can connect up to 12 led lit speakersgrilles to one kmlc.
Kicker Wiring Diagram Svc Kicker Kisl Wiring Diagram
Kicker kmlc wiring diagram. The kicker kmlc remote greatly expands the functionality of the latest led capable km speakers and you. Beginning with power and led wiring. Duration and terms of warranty depend on the laws in the country in. You can wire multiple speakersgrilles in parallel to be controlled by the kmlc by first splicing them together before going into the kmlc as shown in this diagram. Check the amplifiers owners manual for minimum impedance the amplifier will handle before hooking up the speakers. Wiring multiple led speakersgrilles.

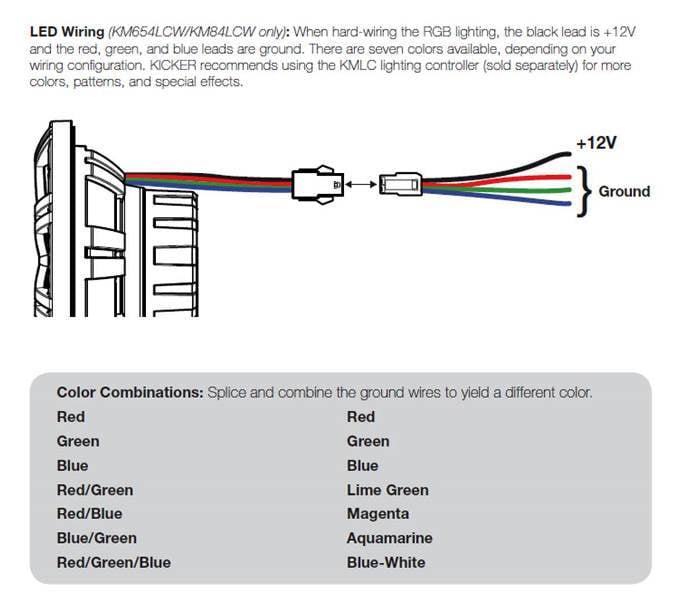

The diagram below shows how to properly wire led speakers in parallel. If only using only one kicker led speaker subwoofer or grille the harness with the in line rf receiver will plug directly into the harness attached to the speaker. If problems persist test with one speaker to ensure the kmlc is functioning properly. The following diagrams are the most popular wiring configurations when using dual voice coil woofers. Kicker products are warranted against defects. When using a controller you simply need to wire the leds to the corresponding color wire from the controller like the kicker kmlc and supply the controller with 12 volts and ground.
Dual voice coil wiring options. Led wiring for rgb speakers and rings. Tyson coker an 11 year veteran of kicker technical support talks about different wiring options for your coax speakers. For additional speakersgrilles additional kmlcs will be required. 4 ohm mono is equivalent to 2 ohm. They show a typical single channel wiring scheme.
