This is a tutorial on how i install a shelly 1 pm. The are no separate load and neutral lines.
Smart Switch No Neutral Onehoursmarthome Com

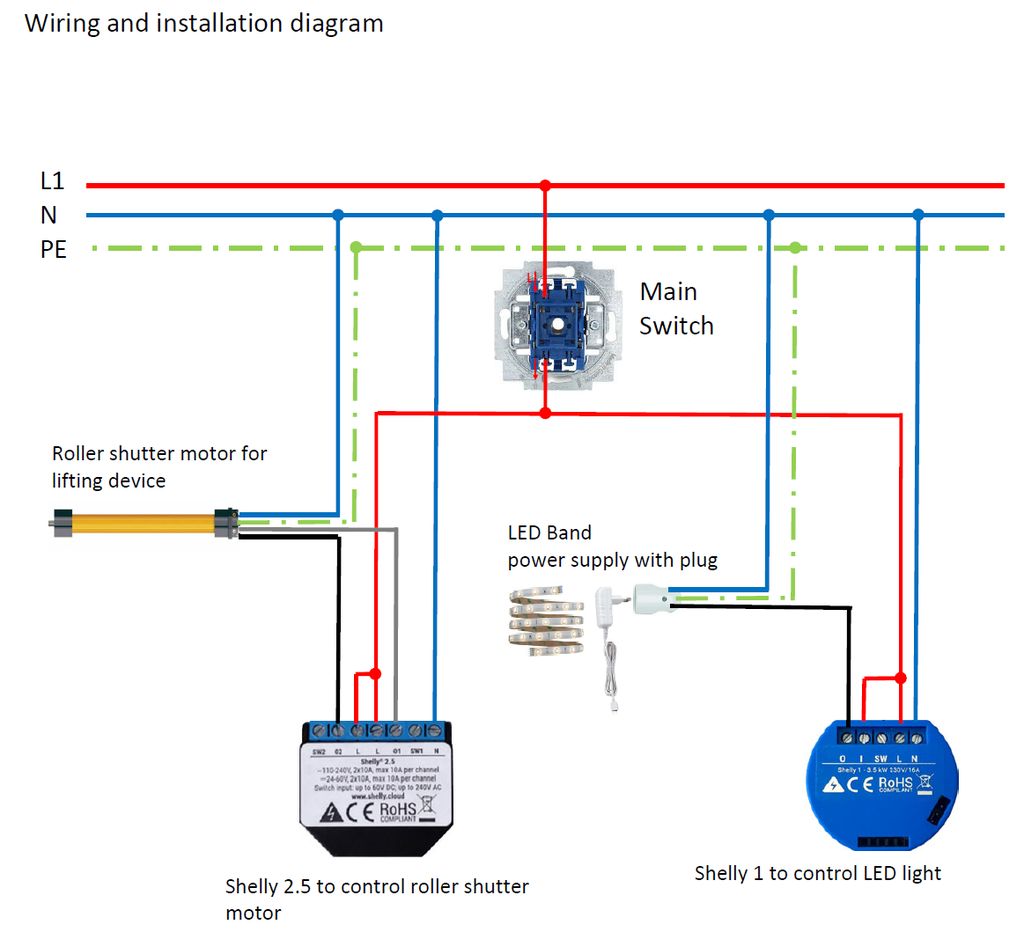

Shelly 1 wiring diagram. Wifi relay switch into a typical light switch. To avoid these unpleasant situations install shelly 1pm at home and you will be able to control your lights with just one tap via your smartphone or with your voice. Install the shelly into the base of the new lamp and connect up the lamp wires. All of the shelly diagrams show connecting to a neutral hot and load. Shelly 1 relay wiring diagram for light switch. Im having a difficult time finding a wiring diagram for just the two wire switchoutlet where one wire is hot and the second wire neutral continues to the load.
Shelly devices are secured but at the same time allow everyone to use them easily in new and existing projects. Wiring diagram for shelly step 1. Rember to reduce the length of the lamp wire so the pendant is at the correct height. 12573 times viewed lass dich durch uns informieren wir informieren dich über neuigkeiten und angebote von allterco. Device pinout visit our rest api for developers. Diesen findest du rechts in der menueleiste ganz unten.
N goes to neutral required l and i and the linelive input on the light switch which you determined above connect to linehot. The redbrown live of the lamp should connect to the output of the shelly 1. By default the shelly 1 is set to take in mains ac voltage or 24 60v dc. The shelly will only supply power when you want the light on. Melde dich beim newsletter an. Sw connects to the light switch input previously connected to load light o connects to the non hot load wire previously connected to the light switch.
Expand your shelly1 smart switch. With the compact size of shelly 1pm you can make any light switch smart. Prepare the 12v dc adapter first shift the source voltage jumpers on the shelly 1 into the position for 12v dc. Or maybe you are going to bed and need to switch off all the lights so annoying. With the embedded web server and http commands shelly can be made compatible with your existing home automation system. 5x shelly 1 4x shelly 25 3x shelly bulb 1x shelly dimmer 3x shelly doorwindow 1x shelly duo 9x shelly duo gu10 3x shelly flood 2x shelly ht 7x shelly plug s und 2x shelly rgbw2 2x shelly temp addon.
Modify a decora rocker switch to a momentary switch with ease create a secondary long press action to toggle additional devices andor automations in your home. You can turn any regular switch or receptacle into a smart switch with this device. Connection diagrams shelly 1. Shelly 1 is open to the world and developers.
