The harness can be routed and connected as follows. Confirm that the ignition control box has a solid negative ground.
Transistor Ignition And Points Style Corvette Distributors

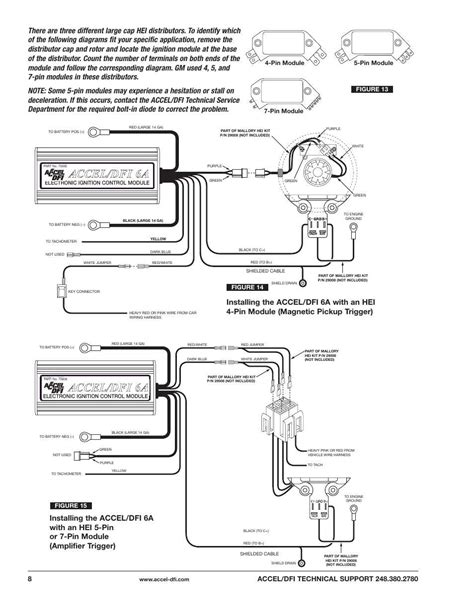

Accel distributor wiring diagram. Hello i am planning to install an msd 6al 2 with my accel 52202 distributor that has a magnetic pickup. The msd has a green and violet for magnetic pickup. With the supplied zip ties. Re attach the coil primary wire to the tower on. Securely position the wiring harness. Take the distributor wire that would normally be connected to the coil and connect it to the msd white trigger wire tape off the violetgreen wires.
Distributor cap accel 52000 distributors are supplied with a male tower clip on cap with hei style spark plug wire connections and a wire retainer ring. Begin by connecting the 32 pin and 24 pin ecm connectors to the acceldfi ecm making sure that the tabs snap into place. Replace anything that was moved or removed during the installation. This assumes that the distributor was hooked up to a power source and that you were already running the accel unit with a stock coil. The distributor has three wires red brown black. If a more tradition style female tower distributor cap style is desired or required then the accel 52000 distributors can be fitted with an accel tan cap and rotor kit pn 8120.
Some dielectric grease on the wire boot will help seal out moisture. Acceldfiacceldfi an overview schematic of the main wiring harness mwh is shown in figure b page 23. Which accel wires connect to the green and violet wires on the msd.
