Or when a short occurs between the bell and bell terminal wiring or between the bell. Power for 4197 panels auxiliary power output 12vdc at 80 ma power wires may run up to 375 feet using 16 awg wire separate supply 4197 vista 50p polling vista 50 vista 50pul loop vista 50ul extender input polling loop extension polling loop.
Vista 20hw Installation Instructions 2 Partitioned Security
Vista 50p wiring diagram. Vista 50pvista 50pul summary of connections diagram47 the purpose of this document is to provide a quick and easy way to program your entire system. Alarm output supervision when supervision is enabled the vista 50pvista 50pul monitors the alarm output wiring for open and short circuit faults while the output is inactive. A recommended programming procedure is included followed by a list of program fields with the corresponding. The system provides a trouble indication zone 98 when an open occurs. 25122018 25122018 7 comments on vista 50p wiring diagram. A manager code can add an operator level code but cannot add a.
Vistap security system pdf manual download. Installing the controls circuit board refer to the diagram below when mounting the pc board. 02 75 new users code or master or manager code but the code must be a higher level of authority than the code being changed eg. Vista 50p wiring diagram. 27 wiring 4 wire smoke detectors to zones. Vista 50pvista 50pul installation and setup guide changing a master manager or operator code enter installer code 8 new user no.

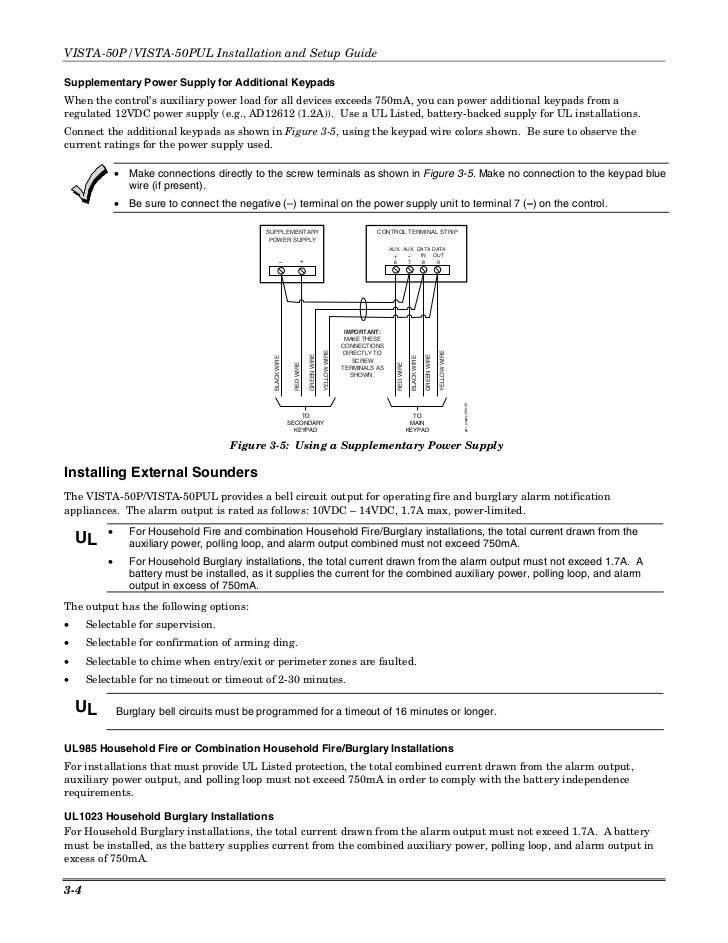

N5944 6v1 rev b 499 vista 50p vista 50pul partitioned security system with scheduling installation instructions and programming guide. 4197 may be powered from.
