The recommended ring terminals are manufactured by thomas betts or equivalent. In addition they may be wired for either normal or rapid stopping.
Service 1 Brake Coil 점검
Sew brake rectifier wiring diagram. It functions like the rectifier type bge however it is designed to be mounted in a control panel on din rail and not in the motors conduit box. The integrated design of the sew brake motor makes for particularly compact and sturdy solutions. When connecting the supply power from the motor terminal block to the brake rectifier follow the specifications below. There are certain cases where the brake rectifier can receive its voltage from the motors. Fractional accelerator sew eurodrivedriving the world brake coil. 232 basic functions in contrast to other disc brakes with a dc coil the sew brakes operate with a two coil system.
6 2018 common connection diagrams 24 brake control sew brakes are available for either normal or rapid starting. Connecting wire is to be awg14 mtw 600v 105c temperature rating and black col or. The brake endshield is a part of both the motor and the brake. The wiring diagrams for brake connections are located on the inside of the motor conduit box lid. Refer to the operating instructions for wiringrefer to the operating instructions for wiring diagrams sew eurodrivedriving the world. Product training 23 troubleshooting.

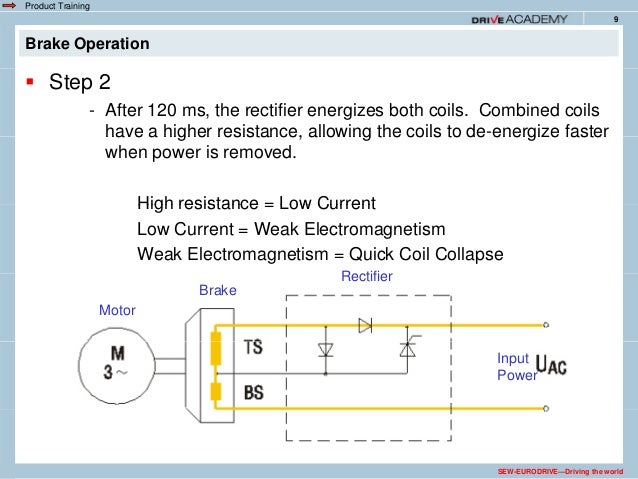

A characteristic feature of sew brakes is th eir very short length. 241 normal starting bg the bg rectifier provides normal starting which is sufficient for most applications with low or infrequent cycling. The brake will release and allow the motor to rotate when the nameplate ac brake voltage v b is supplied to the brake rectifier terminals. The bme brake rectifier is a half wave rectifier with overvoltage protection elements and electronic control for reducing the brake release reaction times. An sew brake rectifier controls both coils. Product training 8 brake operation.
