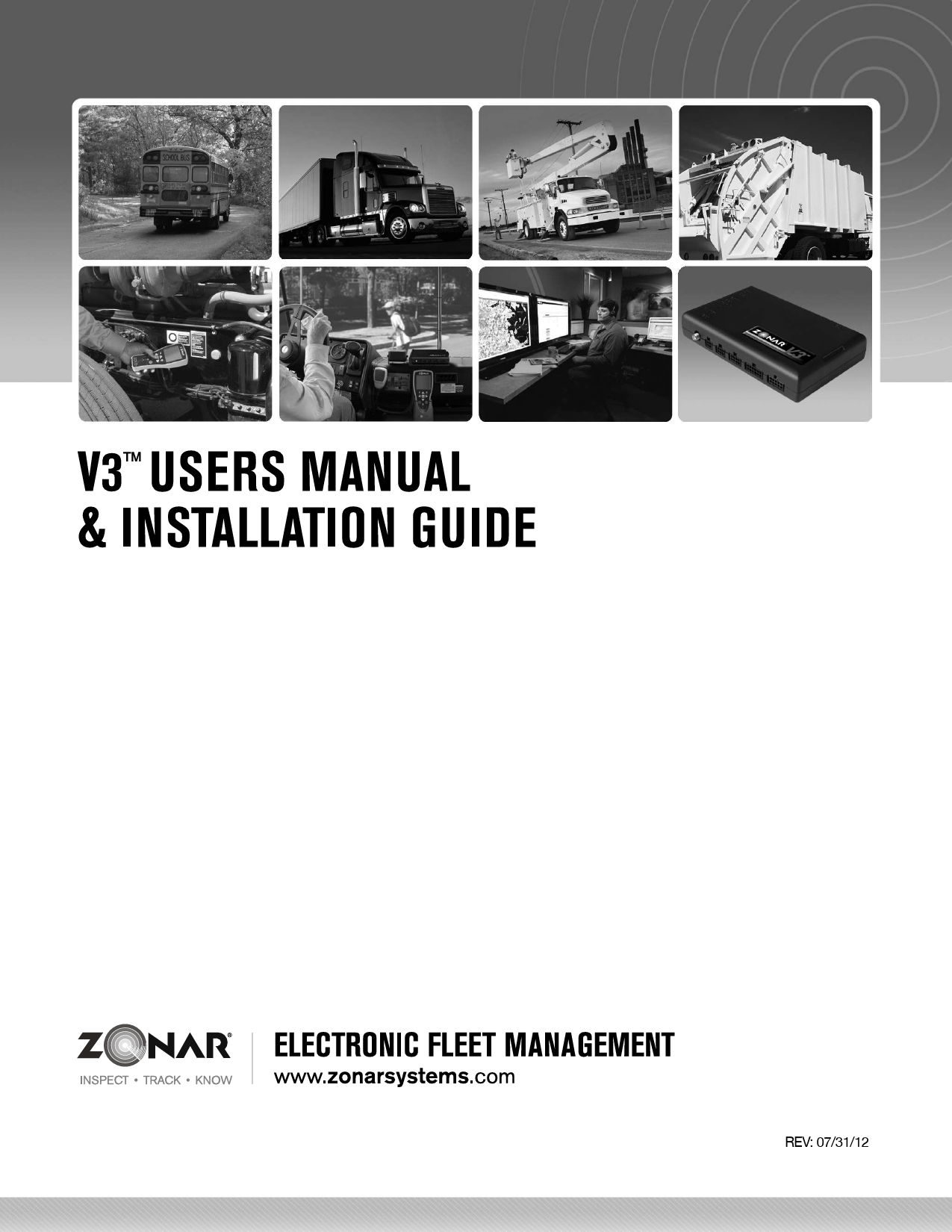

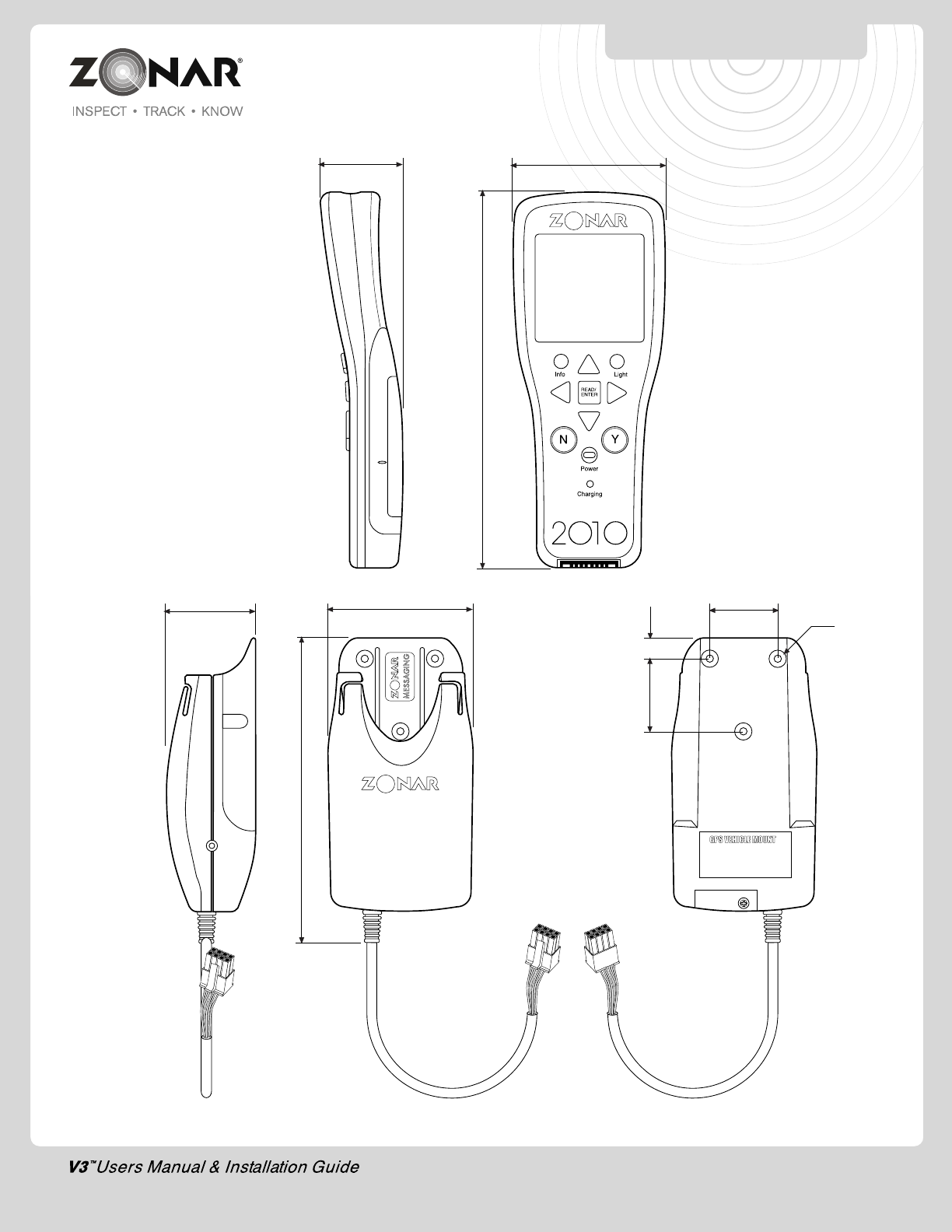

V4 User Manual And Installation Guide Zonar Systems Support

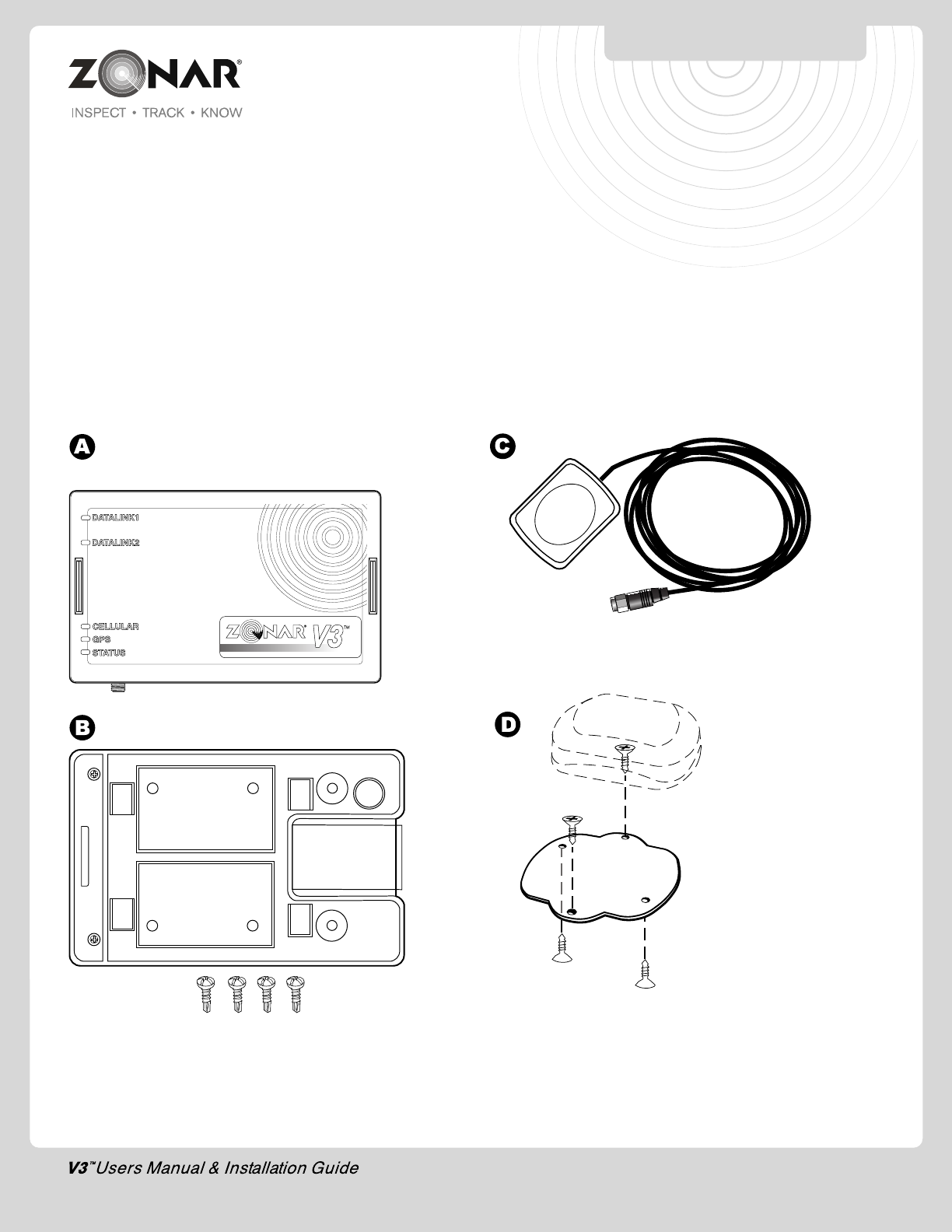

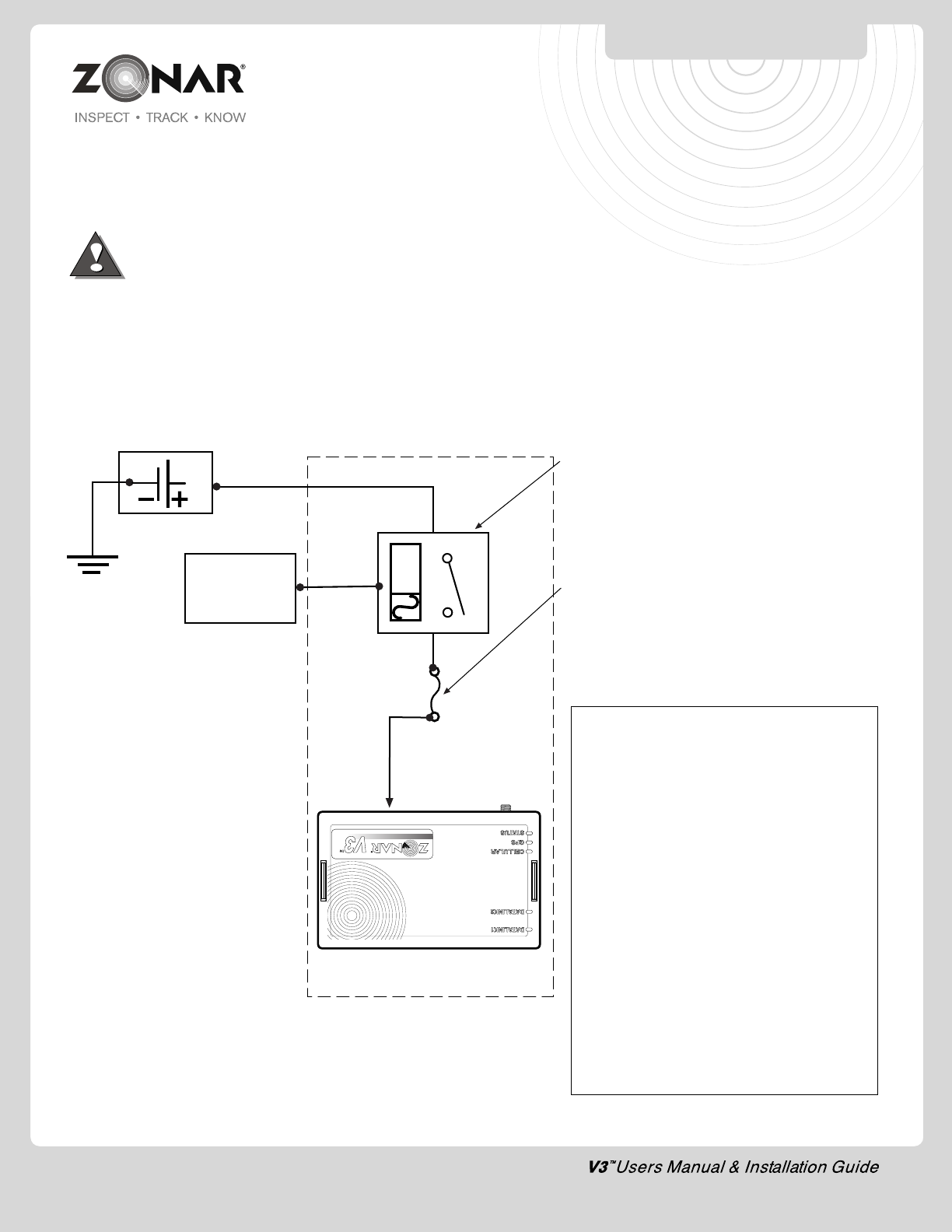

Zonar v3 wiring diagram. Follow the diagram to the left to correctly connect the tablet cable to the gps unit. Connect requires a zonar gps unit to operate. With pto and five io expansion ports capture additional data from your assets like when the boom is raised door swings and plow drops. Remove the fuse panel cover to gain access to the fuse panel. The constant power and ground wiring can most easily be connected through the fuse panel. V3 gps unit v4 gps unit.
Find the gpsid sn number on the back of the unit. Wiring guidelines wiring guidelines for unterminated power and ground leads 4 pin and moac t the authorized method for power termination on the zonar v3 system is the use of add a circuit fuse taps. The installation technician must record which gps unit is being installed in each vehicle before any zonar equipment is installed. Prep your fleet for the restart. If due to the particular. Refer to the cable guide for reference.
Zonar recommends attaching an add a fuse or spade connector to the constant power wire. Please contact the vehicle manufacturer for any specific electrical questions gap created by improper use of probe proper use of probe 12 wiring guidelines wiring guidelines for unterminated power and ground leads 4 pin and moac t the authorized method for power termination on the zonar v3 system is the use of add a circuit fuse taps. Details on operating the v4 and its built in applications and software are given in this guide. Take this time to prepare your fleet to resume usual. Zonars install manual says to put the unit on the dash but that looks to the existing gps antennae then location of the v3 doesnt matter as itwe also provide images such as wiring diagrams engine diagrams parts diagrams transmission diagrams replacement parts electrical diagrams repair manuals engine schemes wiring harness fuse. A professional team of zonar support technicians and engineers are available to answer your installation questions.
Refer to your specific vehicle manufacturer guidelines for the installation of electrical components and wiring. Disconnect gps unit 4 pin power. Plug in the connect powerdata cable to the gps unit the connect dock vehicle power and back up camera if desired. Refer to your specific vehicle manufacturer guidelines for the installation of electrical components and wiring. Flexibly designed zonar v4 is a unique telematics control unit that can be installed in your light duty heavy duty and off highway vehicles. Disconnect vehicle battery recommended.
The new sanitation configuration is an extension of zonar evir which is already widely used for verifying fmcsas mandated pre and post trip inspections. Whenever possible use fuse taps for power termination. Locate a constant power source that measures 8 30 volts with engine off or on. While school bus operations are paused get ready for the new normal.
