Lets assume the load you are controlling is a light. By wiring a 2 way switch the circuit below shows the basic concept of electricity flow to the load.
2 Way Switching Diywiki

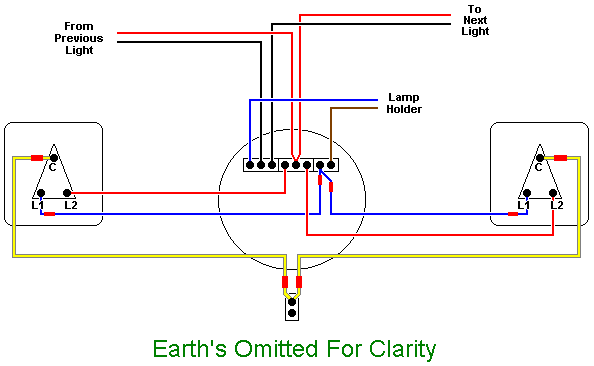

Two way lighting wiring diagram. Wiring diagrams two way switching is most commonly found on stairs and landings and long corridors. Now it is time for the switching arrangement to. This is a completed circuit. The electricity flows from the hot wire black through the 2 way switch shown in off position and then to the light and returns through the neutral wire white. The next length of the twinearth cable will run from the light to the first two way switch. The first length of cable will be from the supply to the light.
The power source comes from the fixture and then connects to the power terminal. 2 way switching means having two or more switches in different locations to control one lampthey are wired so that operation of either switch will control the light. This arrangement is often found in stairways with one switch upstairs and one switch downstairs or in long hallways with a switch at either end. Please note that the some of the below diagrams have been drawn with the older cable core colours others with the new cable colours. The first step is to wire up the light pendant. Two way switching wiring diagram two way light switching 3 wire system new harmonised cable colours showing switch and ceiling rose wiring.
You will see that there is a hot wire that is then spliced through a switch and that then goes to the hot terminal of the light. A 2 way switch wiring diagram with power feed from the switch light. There are a few different methods of providing a 2 way switching circuit these are shown below.
