The onoff was the tricky one. Can i bypass or not hook up on off toggle switch.
Tdpro Electric Starter Brushless Motor Controller Wire Harness Loom Current Stabilizer For 1800w 48v Electric Go Kart Pitbike

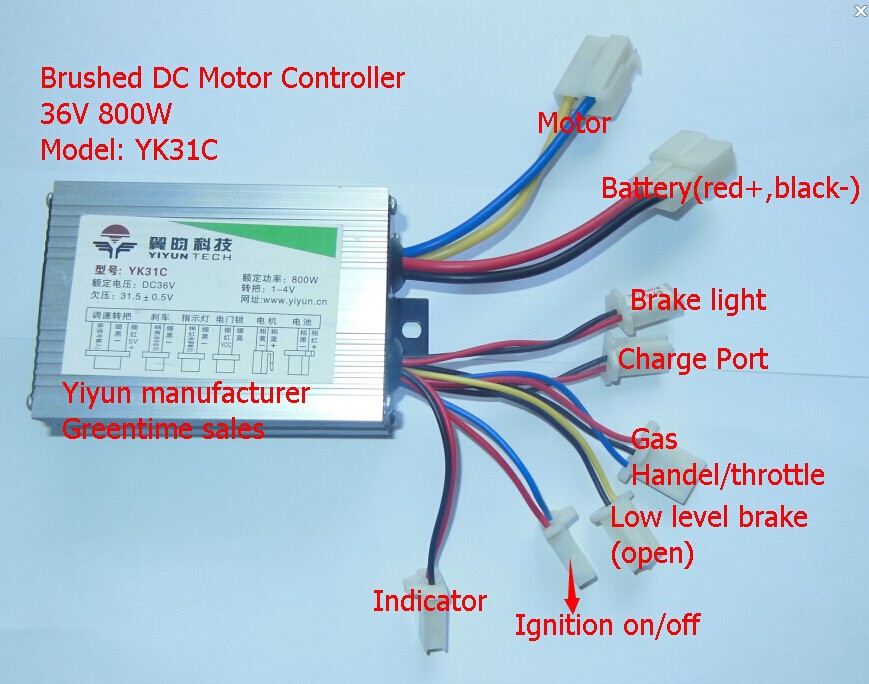

Tdpro yk31c wiring diagram. I thought that with throttle battery and motor plugged in it would runwrong. When the brakes are engaged the brake switch signals the controller to turn off the motor. Wiring diagram in product description tdpro 48v w electric bicycle brushless speed motor controller for24v w dc motor brushed speed controller electric scooter throttle electric scooter wiring diagram bestharleylinksfo attractive 24 volt electric scooter wiring. Due to the delicate nature of voltage and speed controllers and the care that must be taken when making connections it is the tnc scooters company policy that all voltage and speed controller sales are final. The wiring wasnt hooked up when i got it so im at a loss already plus a newbie to this. Yiyun yk31c speed controller 24v 36v and 48v wirring diagram speed controller item yiyun yk31c battery motor brake lever battery indicator light throttle charging port lock power switch on back battery 12 volt charger port motor brake levers throttle yk31c diagram brake brake cha port sp in gover mo or t tery ion switch at or.
Here is manual for yiyun yk31c controller how to properly plug the connectors. I have a 24v 350w yk31c controller i cant seem to get right on my e rivet mini bike. Please ensure you are comfortable making delicate wiring connections prior to ordering. Under voltage battery protection. I dont have a key so to start with i just connected the blue and red wires together to be always on. I hooked the charger port straight to battery and the battery is charged.
The diagram contains all you need to get up and running. The cutoff value is 20 volts 05 volts motor cut off during braking. Youll have some wire pairs left over but thats fine youll have control of your motor. When the battery pack falls below a specific voltage the controller turns the motor off preventing over discharging of the battery pack which extends the battery packs lifespan.
