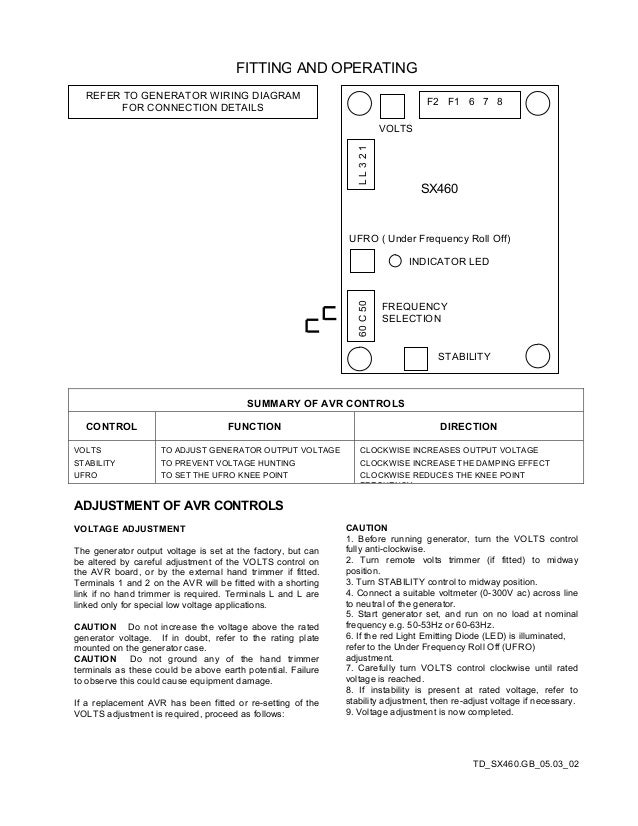

Sx460 avr wiring diagram. Collection of sx460 avr wiring diagram. Sx460 avr controls 32 initial avr setup notice the avr must be setup only by authorised trained service engineers. The sx460 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brushless generator. Sx460 avr wiring diagram a novice s overview to circuit diagrams a first look at a circuit representation might be complicated yet if you can review a subway map you can read schematics. A wiring diagram is a streamlined standard photographic depiction of an electric circuit. The wiring diagram leaves a bit to be desired and refers you to the generator wiring diagram which i dont have.
The sx460 is an analogue 2 phase sensing self excited automatic voltage regulator avr. Refer to alternator wiring diagram for connection details. Sx460 automatic voltage regulator avr. Sx460 avr wiring diagram beautiful stamford alternator wiring. Refer to generator wiring diagram for connection details. Show footer hide footer.
Essentially i a scrapping the old af stuff as the operation is intermittent at best. Sx460 avr wiring diagram sample 45 best avr circuit diagram pdf. Obtaining from point a to point b. Sx460 automatic voltage regulator avr. Control function turn potentiometer clockwise to. I just got an sx460 avr for my mb 19.
It reveals the elements of the circuit as streamlined forms as well as the power and signal connections in between the tools. General description technical specification sx460 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brush less generator. Literally a circuit is the path that allows electrical power to flow. Stamford mx322 automatic voltage regulator. The sx460 is most commonly used on our uc range and are supplied as standard to the uc22 and uc27 alternators. Newage dm710 digital excitation control system.
In addition to regulating the generator voltage the avr circuitry includes underspeed and sensing loss protection to ensure. General description technical specification sx460 is a half wave phase controlled thyristor type automatic voltage regulator avr and forms part of the excitation system for a brush less generator. Stamford generator wiring diagram new sx460 avr pdf incredible. The objective is the very same. The avr is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage. Shaluo nice sx440 alternator internal avr circuit diagram of.
Sx460 refer to generator wiring diagram for connection details. So it looks like i simply connect fx to the positive field and fxx to the negative field.
