Start Stop Jog Wiring Diagram

With the switch closed the control circuit acts as a normal stopstart station controlling a load connected to the pilot device power is sitting on the start and seal. The jog circuit in configuration 1 operates as follows.

Latching Contactor Circuit Diagram How To Wire This Latching

Latching Contactor Circuit Diagram How To Wire This Latching

Start stop jog wiring diagram. Pilot light l2 4 2 3 pilot light start stop bulletin 1495 normally closed auxiliary contacts are required. Each component should be set and linked to different parts in specific manner. Motor starter wiring diagram start stop motor starter wiring diagram start stop every electrical arrangement is composed of various distinct pieces. Collection of start stop wiring diagram. You can see that the diagram will work the exact same as the circuit above with the start and stop pushbuttons. T w 6.

Otherwise the structure will not function as it ought to be. This video is a step by step explanation of wiring start stop basics. This is the first of many motor control. Adding a jog input to the hard wiring diagram will look something like this. A wiring diagram is a streamlined conventional photographic representation of an electric circuit. The jog when pushed will break the sealing contact and then make a bypass of the start pushbutton.

Typical wiring diagrams for push button control stations 7 start stop control wiring diagrams single station with motor stopped pilot light l1 start l2 i 1 stop 2 oi 3 n wol. C i m nc. It reveals the components of the circuit as streamlined shapes as well as the power as well as signal links in between the gadgets. As long as you follow the ladder diagram and take it one wire at a time its simple. A switch is wired in series with the seal in of the pilot device.

Gallery of Start Stop Jog Wiring Diagram

Xt 3710 Start Stop Motor Control Circuit Diagram Together
Download Now
Xt 3710 Start Stop Motor Control Circuit Diagram Together
Motor Controls For Dummies Electrician Talk Professional
Download Now
Motor Controls For Dummies Electrician Talk Professional
Two Wire Amp Three Wire Motor Control Circuit Motor Control
Download Now
Two Wire Amp Three Wire Motor Control Circuit Motor Control
Jogging Control Circuits
Download Now
Jogging Control Circuits
Run Stop Relay Circuit
Download Now
Run Stop Relay Circuit
Hand Off Auto Switch Operation Electrical Engineering
Download Now
Hand Off Auto Switch Operation Electrical Engineering
Ladder Logic For Special Motor Control Circuits Jogging And
Download Now
Ladder Logic For Special Motor Control Circuits Jogging And
Results Page 183 About 4051 Ic Searching Circuits At Next Gr
Download Now
Results Page 183 About 4051 Ic Searching Circuits At Next Gr
Jogging Inching Control Circuits Basic Control Circuits
Download Now
Jogging Inching Control Circuits Basic Control Circuits
Jogging Control Circuits
Download Now
Jogging Control Circuits
Troubleshooting Control Circuits Two Wire Control Electric
Download Now
Troubleshooting Control Circuits Two Wire Control Electric
Input Wiring Plc Program And Output Wiring Is Shown Below Plc
Download Now
Input Wiring Plc Program And Output Wiring Is Shown Below Plc

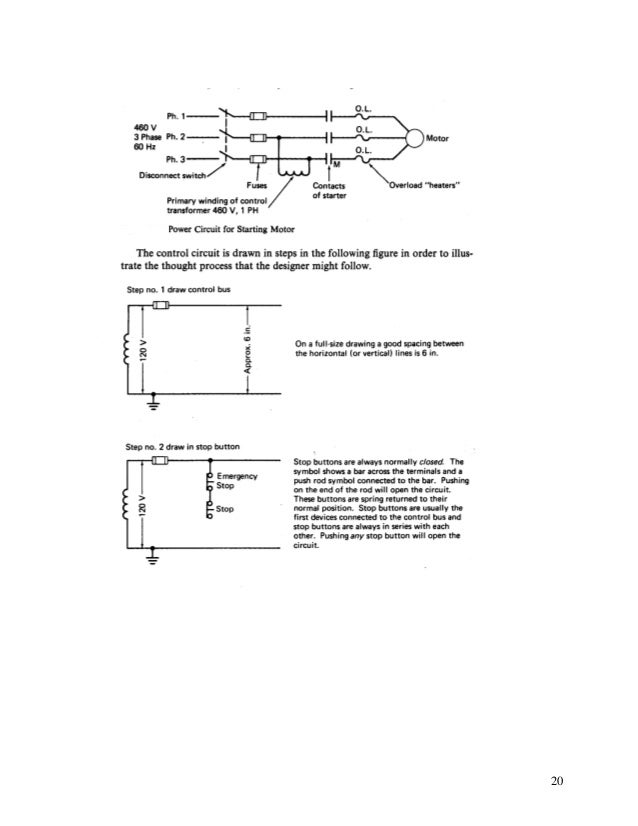

Elementary Diagrams
