Limit wire runs to 25. Models sl 2000 n and sl 2000 p duct smoke detectors alarm hornstrobe key or push button testreset switch terminal 12 terminal 19 terminal 19 terminal 19 terminal 2 terminal 20 green pilot led red alarm led yellow trouble led red red black black red black black red notefor remote accessories with a trouble led.
Space Age Electronics Inc Weatherproof Duct Detector

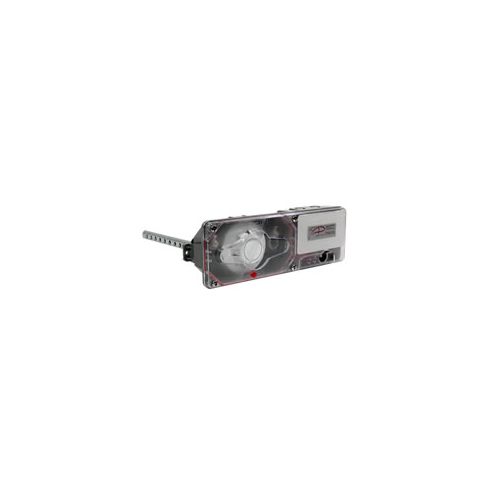

Sl 2000 smoke detector wiring diagram. Wiring diagram shown is for dh100acdc 4 wire duct smoke detector system equipped without a control panel. Sl 2000 series duct smoke detectors hi temp low flow and no tools ul268a 324010040105 urox urox7 file s2829 mea 73 92 e vol. You should be able to see three wires coming out of the harness. White black and yellow. Know the basics of smoke detector wiring and learn how these detectors are connected together in a series. The sl 2000 series smoke duct detector is the latest innovation for early detection of smoke and products of combustion present in air moving through hvac ducts in commercial industrial and residential applications.
Photoelectric smoke detector head model 55000 328apo. The sl 2000 series smoke detector is fitted with a mounting base that will accept an ionization smoke detector head model 55000 225apo or photoelectric smoke detector head model 55000 328apo. Truly we have been realized that how to wire smoke detectors in series diagram is being just about the most popular topic at this time. 27 description the sl 2000 series smoke duct detector is the latest innovation for early detection of smoke and products of combustion present in air moving through hvac ducts in commercial industrial and. The duct unit supports two sets of form c alarm contacts one form a alarm contact and one form c trouble contact. The fixed wires and the wires that protrude from the harness.
How to install a hardwired smoke alarm ac power and alarm wiring intended for how to wire smoke detectors in series diagram image size 715 x 365 px. Sl 2000 duct smoke detector air. The duct unit supports two sets of form c alarm contacts one form a alarm contact and one form c trouble contact. The unit is designed to prevent the recirculation or spread of smoke by air handling systems fans and blowers. The sl 2000 series smoke detector is fitted with a mounting base that will accept an ionization smoke detector head model 55000 225apo or photoelectric smoke detector head model 55000 328apo. Alarm red led power green led common 4 wire wiring to apa151 dh100acdc apa151 h0581 01 installation wire the apa151 as shown in figure 1 thru figure 3 depending on what duct smoke detector is being utilized.
The duct unit supports two sets of form c alarm contacts one form a alarm contact and one form c trouble contact. Yellow a jumper wire. System sensor convention 4 wire duct smoke detector d4120 wiring. The sl 2000 series smoke detector is fitted with a mounting base that will accept an ionization smoke detector head model 55000 225apo or. How to read an electrical diagram lesson. The smoke detectors wiring harness has two parts.
