It may also be poor electrical connections to the resistor block caused by overheating. This is the manual air con system not the full blown climate control.
Renualt Megane Mk2 1 6 Heater Blower Resistor Replacement
Renault scenic heater resistor wiring diagram. For renault scenic 2003 2017 mk ii 2003 2016 mpv. This loom doubles up two of the loom connectors to give improved current carrying capacity. My renault megane scenic s reg heater is not working most likely to be a faulty resistor block which has 3 resistors and a thermal fuse controlling fan speeds 12 and 3 maximum speed 4 by passes the resister block. Renault ask for approximately 350 to carry out repairs a replacement resistor block will cost 50. In 1898 the french company renault specializing in the manufacture of automobiles was foundedthe brand was founded by the brothers louis and marcel renault. Fits citroen nissan peugeot renault heater resistor wiring harness loom.

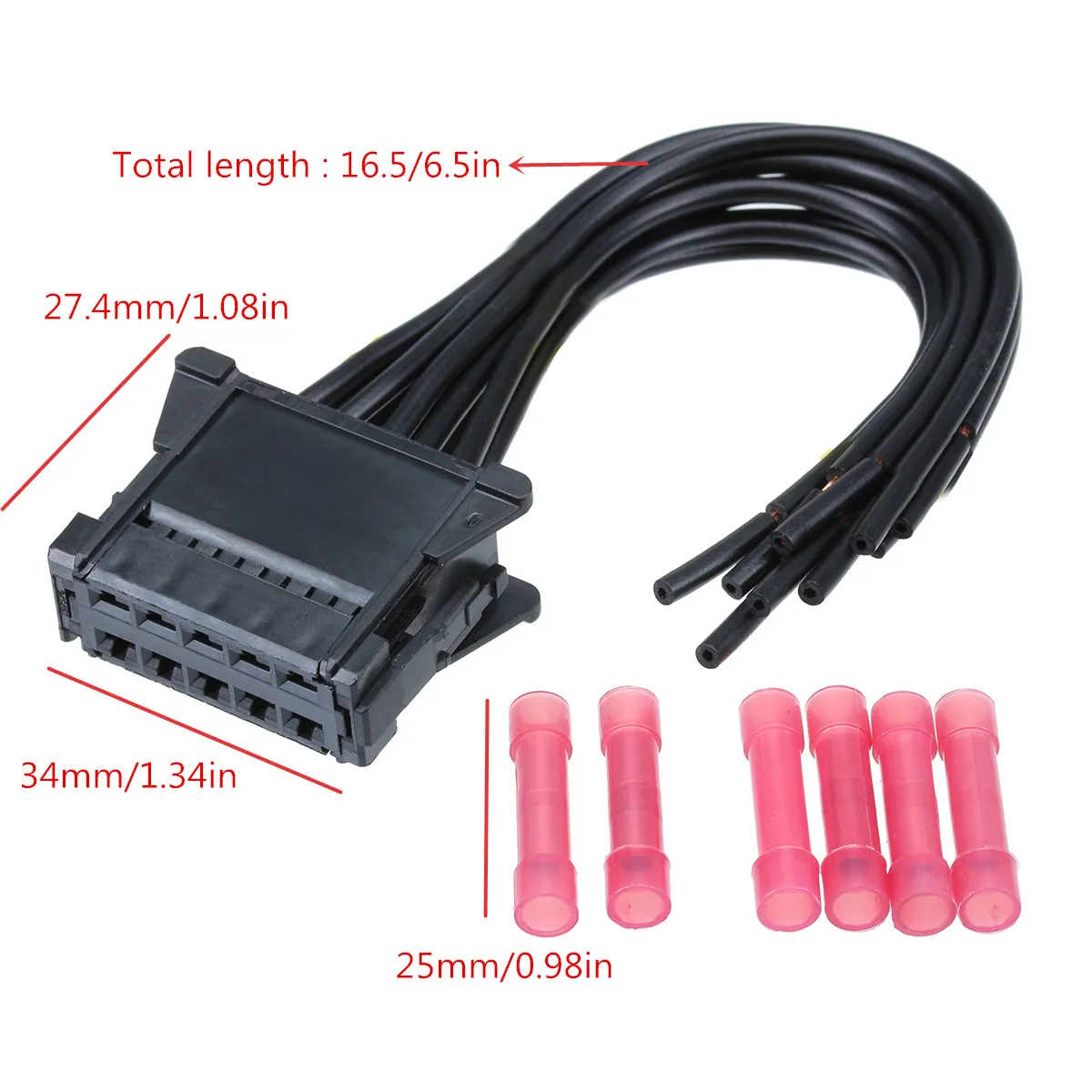

Renault scenic 2003 2009 04 19dci heater blower not working on 4. Car harness connector heater blower resistor wiring loom for renault clio scenic 8906311009232 ebay for renault clio 2005 2017 mk iii 2005 2017 hatchback. Renault scenic ii grand scenic 2. Renault megane scenic x64 nt8145 1999 wiring diagramrar. If you decide to carry out the repairs yourself be advised that if you are not competent to carry out such work. Renault megane scenic ii x84 nt8267a с 28 06 2004 wiring diagramrar.

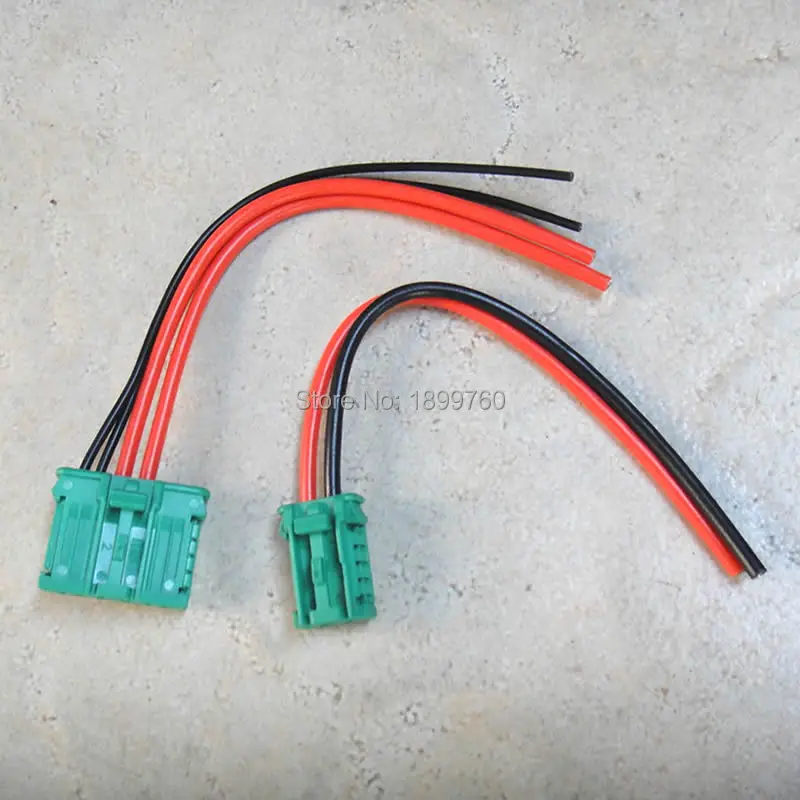

Renault car manuals pdf wiring diagrams above the page duster kajar kangoo koleos logan megane r5 clio captur master espace scenic talisman alaskan wind zoe thalia twizi velsatis fluence laguna. It works fine on 12 or 3. The heater blower resistor loom connector has a tendency to get overheated and burn up. The scenics heater blower has stopped working when the fan is set to position 4 maximum. Heater resistor wiring harness loom fits renault clio grand scenic modus. Oct 28 cut the red wire to the fan from the resistor block cut the yellow at the connector join these.
Supplied by renault for about its a dashboard out job. Renault scenic heater wire diagrams. Heater resistor wiring harness for renault clio modus grand. Heater blower motor resistor for renault megane mk2 scenic grand scenic twingo. Heater blower motor resistor renault scenic renaultoct 27 the purple loom is a repair wiring for the heater resistor. Im guessing its the switch but this being my first canbus wired car am slightly nervous about testing it or disconnecting.
