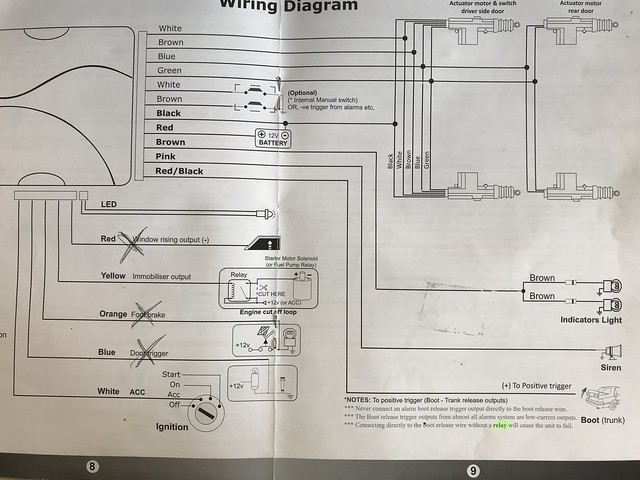

Remote central locking wiring diagram. Make sure that actuator will not block other moving parts inside of door screen and its mechanism. Start by disconnecting the battery to avoid any short circuits. Also make sure that actuator is moving parallel to door lock. Remote control with the motor wire of your central locking system the one that goes to the motor. Vauxhall zafira central locking wiring diagram. These are the feed and earth return for the entire door lock system.
Fitting remote central locking is very easy even for a novice but you need to be willing to remove trim and mess with wiring. The master drive unit is identified by having two extra wires connected to it. Remote transmitter 3 wiring diagrams 1 2 tech support hotline. 5036931918 wwwautoloccom actuator mounting 1. Fuse box for astra 2005 automotive. Join the terminal connectors to the ends of all the wires leading to the drive units.
Remove door panels carefully 2. So pov specs are out of luck. Re vectra b remote central locking discussion mk3 pdf. Central locking system cl2000 2 door standard cl4000 4 door standard ck2000 2 door with remote ck4000 4 door with remote. Remove all the handles fittings and arm rests from the door. Close the vehicle doors.
Download vauxhall zafira central locking wiring diagram free files. Car alarm remote central lock immobiliser al669hc 50 64 pdf. Your central processor is erratci and givng into wrong commands. Foreword mr2 toyota mr2 wiring diagrams download manualslib toyota mr2 electrical wiring diagrams wiring mr2 owners club remote central locking central locking alarm mr2 club toyota owners club toyota electrical wiring diagram autoshop 101 mr2 owners club rev1 central locking power door locks wiring diagram. For an expert it would take less than an hour. Attach the battery again.
Install actuator in correct direction as shown in figures 1 a 1 b and figure 2. Advanced power door lock management is a necessity now given todays complex automotive systems. Before installing the door panels again check the following. Its not plug and play but its not far off. There are a number of different central lockingalarm systems you can buy at your local automotive spare parts retailer but by using a fancy one for a week i quickly determined that there were too many problems with the module making it not very convenient. Central locking system installation manual actuators installation 1.
Central locking wiring diagram each drive unit has a small length of wiring attached to it which terminates in a multi plug. Start from exiting one by one from the battery of the remote to the main hand rest check for poor connection in the wiring harness specially in the areas of the door hinges where the wires go into the customer controlalso try to find out if any moisture or oil has clogged on to the main unit. The need to reduce vehicle weight has prompted these more complex module driven door lock circuits. Make sure your vehicle key is not inside the car. Before starting you already need central locking as standard. In this instructable i will show you how to build your very own remote controlled central locking system.
