The switch part is 650206 6. Jr3000v assembly 1 print diagram.
Makita Jr3000v Parts Reciprocating Saw

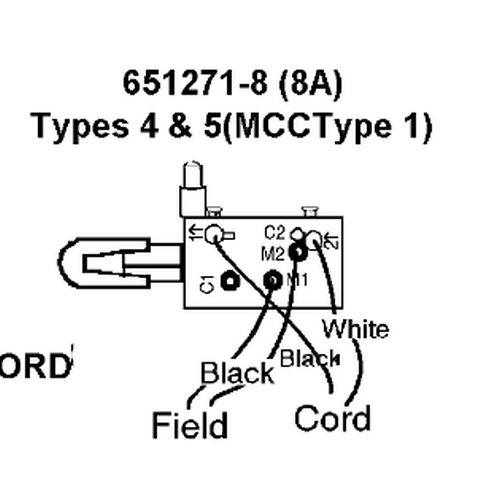

Makita jr3000v switch wiring diagram. There are 2 blue wires coming from the motor and a black and a white wire coming from the cord. I failed to mark the wires from my old switch and am trying to figure out where the wires go. The switch is sears part 6502066. Click on that and scroll down to the 4th page and find the diagram for the 650206 6. On the bottom of the 1st page you will see download diagram. The switch has 4 holes for attaching the wires.
Makita recipro saw owners manual. Makita jr3000v assembly 1 parts diagram swipe swipe. 6502066 switch jr3000v 2520 59. 1558965 sealjr3000v. 58 651271 8 switch jr3000v 1 59 411852 8 switch cover 6805bv 1 61 266044 2 t. Screw flange 5x60 5037nb 2 61 266095 5 tapping screw 5x55 kp0810 2 62 241631 8 fan jr3000v 1 63 258018 7 spring pin 25 9 jr3000v t2 1 65 263002 9 rubber pin 4 hr2400 1 66 443070 0 felt pad jr3000v 1.
I am in need of a wiring diagram so i can make sure to connect properly. Get shopping advice from experts friends and the community. I am replacing the switch in my makita jr3000v reciprocating saw. Screw m5x25 992 063 3. Take a look at the parts diagram for the makita jr3000v. View and download makita jr3000v instruction manual online.
I just got a replacement switch from sears parts for a makita sawzall jr3000v. Jr3000v saw pdf manual download. On the bottom of the 1st page you will see download diagram.
