Liquid Level Controller 4421ad1
Gic liquid level controller wiring diagram. Add to compare the actual product may differ from image shown. Sensor diagram liquid level controller connection diagram terminal torque capacity. Gic liquid level controller 1k 200k supply connection spdt relay connection 1 co8a at 250vac resistive ip supply 110240400vac 20 a1 a2 15 18 16 cable 15mm dia b section b b 2390 960 190 o. Liquid level controller 185 when the level in the tank rises sufficiently to submerge the high level sensor the relay energizes. The relay then remains energized until the level has dropped below the low level sensor. Sensor diagram liquid level controller connection diagram terminal torque capacity.

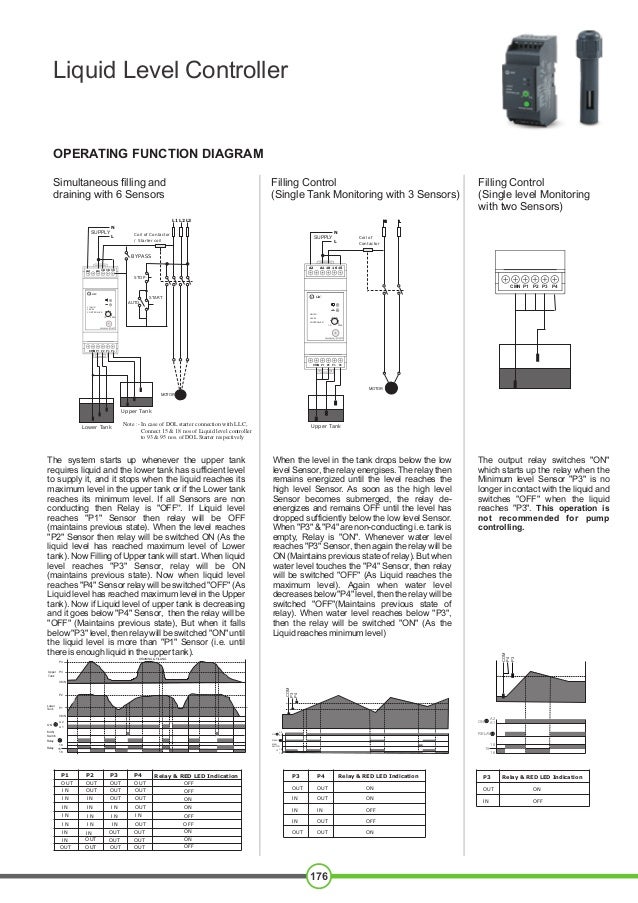

Gic liquid level controller 1k 200k supply connection spdt relay connection 1 co8a at 250vac resistive ip supply 110240400vac 20 a1 a2 15 18 16 cable 15mm dia b section b b 2390 960 190 o. Water level controller liquid level controller by gic india is perfect to protect submersible pumps from dry running and prevents overfilling. Gic liquid level controller 1k 200k supply connection spdt relay connection 1 co8a at 250vac resistive ip. Water level controller enables maximum utilization of incoming liquid supply. As the liquid drops below the low level sensor the relay de energizes and remains off until the level has risen. Operating function diagram motor n l a2 a1 18 16 15 cmn p1 p2 p3 p4 gic 1k 200k liquid level controller lower tank coil of contactor supply n l off p1 p2 relay red led indication out in out out out in in in on on off off out out.
Liquid level controller spdt 240vac.
