Articles in this technical advice section have been supplied by individuals and the essex austin seven club cannot be held responsible for any inaccuracies. Wiring thick and thin we received an enquiry via the club website from an enthusiast in canada who was in the process of rewiring his seven.
Rp Saloon Wiring Diagram Saloon Austin Seven Car Craft

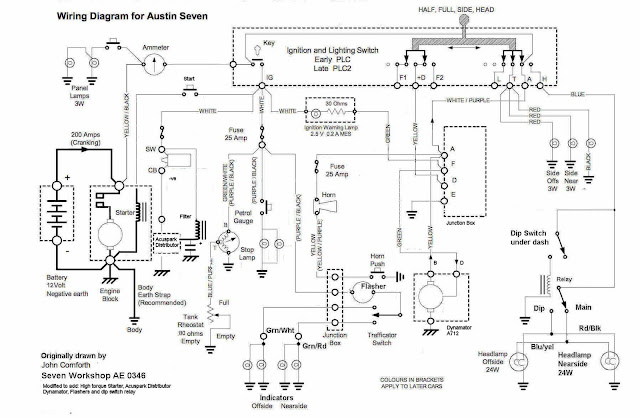

Austin seven wiring diagram. Data sheet download data sheet by clicking on this link a7 data sheet wiring diagram download wiring diagram by clicking on this link wiring diagram to download click. Motorsport fans will remember that austin is first of all two famous for their successes in rallies and races models mini and 18002200 located at opposite ends of the model line of the brand. He was hoping to use the existing wire sizes as a guide but unfortunately the previous owners seemed to have used whatever wire which came to hand. See also wiring diagram for arr ruby variants austin big seven wiring diagram. New wiring diagrams earth all models january 1936. History of the automobile brand austin.
Those who were in london will say that austin. From the handbook of the austin seven publication 972c. The diagram above replaces the cut out and follows the wiring of the old system except originally two wires went to f2. Further articles speciifc to austin sevens written by our members are in technical articlesgeneral articles most of which are not specifically austin seven which apply to many pre war and early post war cars where the advice offered is as relevant. Austin seven 1936 wiring diagramjpg. The austin motor company co ltd longbridge birmingham.
The rp saloon wiring diagram. The wire to the old f2 from the light switch still goes to f2 on the new system but the wire from the dynamo field connection now goes to f1 on the new system.
